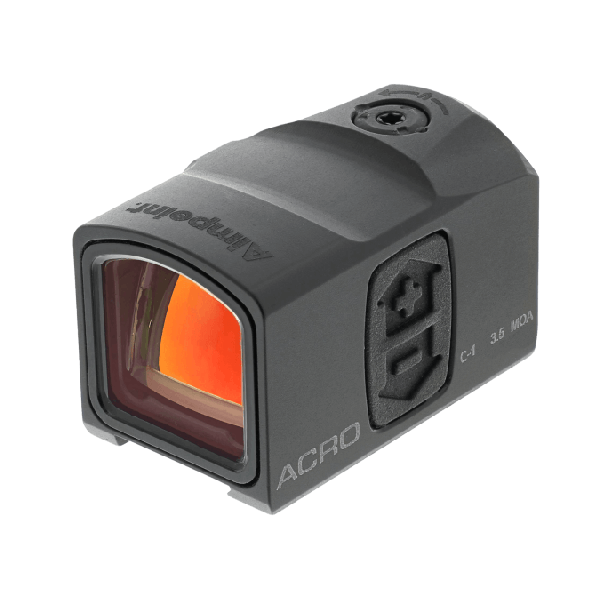

AP Acro C-1 3.5MOA

Išsamiau: The Aimpoint® Acro C-1 (Advanced Compact Reflex Optic) is with its minimal size the smallest enclosed red dot sight system on the market.

Acro C-1 is developed and optimized for use on optic ready pistols in combination with an Acro adapter plate. However, the wide range of available mounting solutions for the Acro series makes it an all-round sight that can be used on several weapon platforms.

The enclosed system makes it reliable and operational in any weather conditions and being tested with 20,000 rounds on a .40 S&W caliber pistol slide, this small optic has proven to lead in ruggedness and reliability.

It is a lightweight, low-profile optic that provides fast target acquisition and an unlimited field of view for hunters as well as sport shooters.

UNIQUE FEATURES

Optimized for pistol and applications which require a low profile red dot system

The only fully enclosed system in its size on the market

Designed for direct integration in combination with adapter plates onto optic ready pistol slides

1.5 years battery operation on position 6 of 10

Battery installation while optic is still mounted on weapon

3.5 MOA dot size

NVD compatible

Submersible to a depth of 5 m (15 ft)

Temperature span -30 °C to +60 °C

OPTICAL SPECIFICATIONS

Operating principle: Reflex collimator sight with LED

Optical magnification: 1x

Aiming dot size: 3.5 MOA

Dot intensity: Visible against a background luminance of 0.1 to 55 000 lx

Optical signature: No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD

Dot color: Peak Wavelength: 655 ± 15 nm

NVD compatible: Yes

Optical coating: Anti-reflex, all surfaces and multi-layer. NVD-Compatible 1, 2, 3

Clear aperture: 16 × 16 mm (0.63 × 0.63 in)

Eye relief: Unlimited

POWER SOURCE

Battery type: 3V lithium battery, type CR1225

Battery life - Day time use: 1.5 years (15 000h) of continuous use at pos. 6 and more than 8 years at NVD-setting

Power intensity: 2 NVD and 8 Daylight settings of which 1 extra bright

PHYSICAL SPECIFICATIONS

Length sight only: 47 mm (1.9 in)

Width sight only: 30 mm (1.2 in)

Height sight only: 30 mm (1.2 in)

Weight sight only (incl battery): 60 g (2.1 oz)

Housing material: High Strength Aluminum

Housing finish and color: Matte black to dark gray

Housing anodized: Yes

Surface treatment: Anodized, semi matt black

Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 17 mm at 100 meters = .6 in at 100 yds

ENVIRONMENTAL SPECIFICATIONS

Temperature range operation: -30°C to +60°C (-22°F to +140°F)

Temperature range storage: -51°C to +71°C (-60°F to +160°F)

Temperature shock: Operable after a temperature shock between -30°C and +60°C. (-22°F and +140°F)

Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic

Submersible: To a depth of 5 m (15 ft.)

Shock: Tested with 20,000 rounds mounted on a .40 S&W caliber slide

Vibration: Withstands vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.

Examples of Acro series mounts and adapter plates:

Acro QD Mount 22 mm, item no. 200517

Acro QD Mount 30 mm, item no. 200518

Acro QD Mount 39 mm, item no. 200519

Acro Adapter Plate for Micro Interface, item no. 200526

Acro Adapter Plate for Glock MOS, item no. 200520

Acro Adapter Plate for HK SFP9, item no. 200521

Acro Adapter Plate for CZ P-10 C OR, item no. 200522

Acro Adapter Plate for Beretta APX, item no. 200524

Acro Adapter Plate for Sig Sauer P320/M17, item no. 200525

Acro Adapter Plate for Sig Sauer X-Five, item no. 200576

Skaityti daugiau
PARAMETRAI: Prekės kodas: 200548

Gamintojas: Aimpoint

Didinimas: 1x

Atsparus vandeniui: Taip

Kol kas nėra atsiliepimų, būk pirmas!

AP Acro C-1 3.5MOA

Būkite pirmas palikęs atsiliepimą

527,00 €

Prieinamumas: Sandėlyje

Only 4 left

SKU

200548
